Ford Key Replacement

What Ford Key Systems Does Triton Locksmith Program?

Ford has used two major anti-theft key systems since 1996: PATS and Intelligent Access. Each has evolved through multiple generations with different chips and security levels. Here's the technical breakdown:

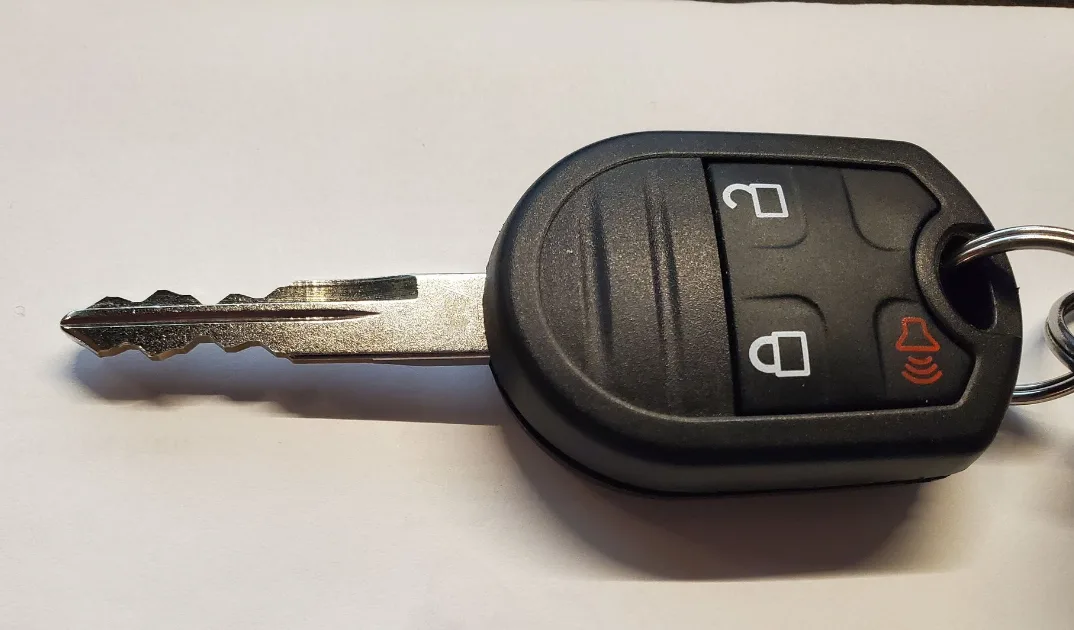

• PATS Generation 1 (1996-2005): Passive Anti-Theft System using Texas Instruments 4C transponder chips. Fixed code. Found on F-150 (1997-2003), Explorer (1998-2005), Mustang (1996-2004), Taurus, Focus. The PATS module reads the chip through an antenna ring around the ignition. Programming requires reading the PCM's PATS parameter and registering the new key. Blade blanks: H72, H74, H84. $100-$140.
• PATS Generation 2-3 (2005-2017): Upgraded to 4D-63 chips with 40-bit and later 80-bit encryption. Found on F-150 (2004-2017), Explorer (2006-2019), Escape (2008-2019), Fusion, Edge. The 80-bit version (used on 2011+ models) added a rolling code that made cloning impossible. Must be programmed through OBD-II. Blade blanks: H84, H92, H94. $120-$175.
• PATS with HiTag Pro (2015+): Some newer Fords use Philips/NXP HiTag Pro chips with AES encryption instead of 4D-63. Found on select 2015+ models. Requires our most advanced programming tools. $140-$200.

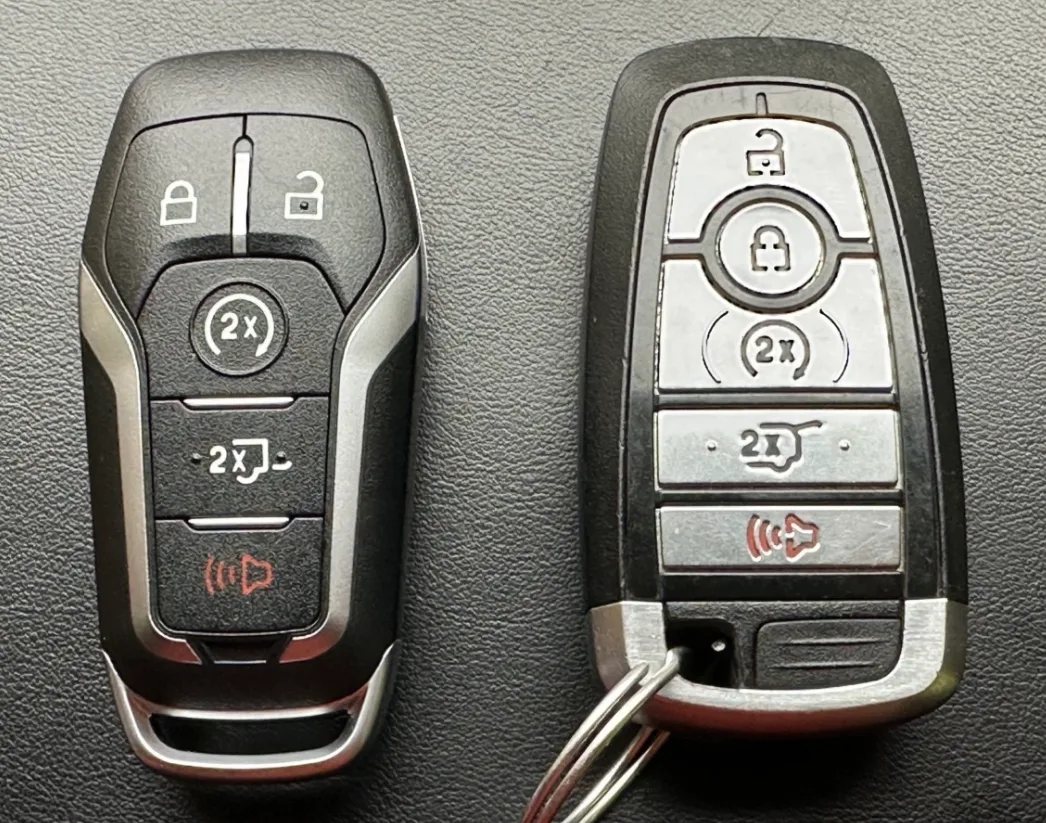

• Intelligent Access (2011+): Ford's proximity/push-to-start system. Found on Explorer (2011+), Escape (2013+), F-150 (2015+), Mustang (2015+), Bronco (2021+), Edge, Expedition. The fob uses 315 MHz for remote functions and 125 kHz for proximity detection. Programming registers the fob with the BCM (Body Control Module). Some 2018+ models require Ford's FDRS (Ford Diagnostic and Repair System) server connection. Our Autel tools have the connectivity. $200-$275.

How Much Does a Ford Key Cost?

$100-$250 from Triton Locksmith. $200-$400 at the Ford dealer.

• PATS transponder key (4C/4D-63): $100-$150
• Remote head key (4D-63 + buttons): $125-$175
• HiTag Pro transponder key: $140-$200
• Intelligent Access fob (proximity/push-start): $200-$275
• Emergency blade (inside IA fob): $25-$50
• Ford dealer price: $200-$400 + tow + 2-5 day wait

The Ford F-150 is the best-selling vehicle in America. We carry F-150 key blanks for every year from 1997 to present. It's one of our top 5 most common key calls.

What Is PATS and How Does It Work?

PATS (Passive Anti-Theft System) is Ford's transponder immobilizer. "Passive" means it works automatically without you doing anything. When you insert and turn the key, the PATS antenna ring around the ignition sends a signal to the chip in the key head. The chip responds with its encrypted ID. The PATS module checks the ID against its stored list. If it matches, the PCM enables fuel injection and the engine starts. If it doesn't match, the engine cranks but won't fire and the theft light blinks.

PATS stores up to 8 key IDs. When we program a new key, we add its ID to the PATS parameter in the PCM. On some older Fords (1996-2007) with two existing programmed keys, you can self-program a third key through a key-cycle procedure. But if you have only one key or zero keys, professional OBD-II programming is required. That's where we come in.

What About Ford's FDRS Programming Software?

FDRS (Ford Diagnostic and Repair System) is Ford's dealer-level diagnostic platform. On some 2018+ Ford models, key programming requires a connection to Ford's cloud-based FDRS server for security verification. This is similar to what Mercedes and BMW do with their server-based systems.

Our Autel IM608 Pro handles most Ford key programming without needing FDRS. For the models that specifically require the Ford server connection, we have the authenticated access. You don't need to worry about FDRS. We handle the entire programming process at your location.

What Ford Models Does Triton Locksmith Service?

Every Ford model from 1996 to present:

• F-150: 1997-present. PATS 4C through 2003, 4D-63 2004-2017, Intelligent Access 2015+.
• Explorer: 1998-present. PATS through 2010, IA 2011+.
• Escape: 2001-present. PATS through 2012, IA 2013+.
• Bronco: 2021-present. Intelligent Access standard.
• Mustang: 1996-present. PATS through 2014, IA 2015+.
• Edge: 2007-present. PATS through 2011, IA 2012+.
• Expedition: 1997-present. PATS through 2017, IA 2018+.
• Ranger: 1998-2011, 2019-present. PATS on all years.
• Fusion: 2006-2020. PATS/IA depending on year.
• Transit: 2015-present. Commercial van. PATS standard.
• Lincoln (all models): Same Ford PATS/IA platform. MKZ, MKC, Navigator, Corsair, Aviator.

Can Older Fords Self-Program Keys?

Some 1996-2013 Fords with two working programmed keys allow self-programming of a third key. The procedure involves cycling the ignition with both existing keys in a timed sequence. The vehicle enters programming mode and accepts a new key. This is free and takes about 5 minutes.

But it only works if you have two working keys. If you have one key or zero keys, self-programming doesn't work. You need professional OBD-II equipment. 2014+ Fords eliminated self-programming entirely. Call us and we'll tell you if your specific vehicle supports it.

Where Does Triton Locksmith Replace Ford Keys?

At your Ford, anywhere across 48 South Florida cities. Boca Raton, Coral Springs, Coconut Creek, Fort Lauderdale, West Palm Beach. 20-minute response. Call (561) 524-8500.
