Transponder Key Programming

What Is a Transponder Key and Why Does It Need Programming?

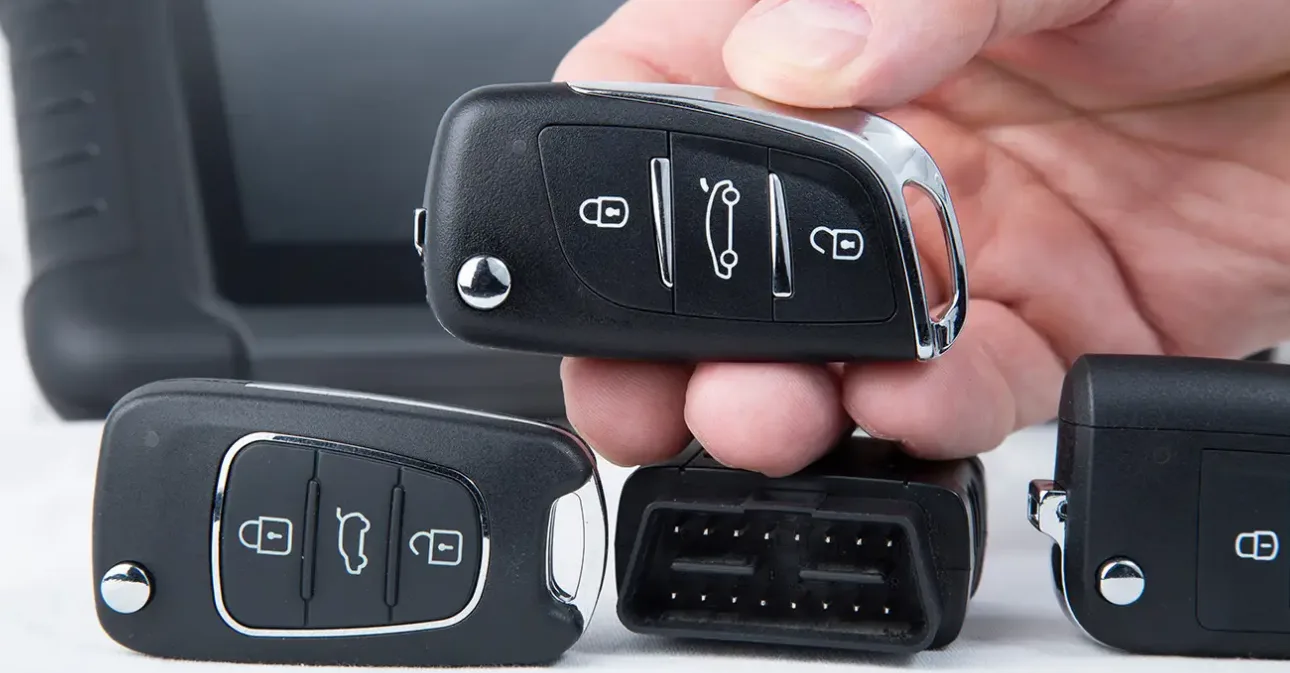

A transponder key has a microchip embedded inside the plastic head that communicates with your car's immobilizer system. When you insert the key and turn the ignition (or bring a proximity fob near the start button), an antenna ring around the ignition sends a radio signal to the chip. The chip processes the signal and sends back an encrypted response. If the car's Engine Control Module (ECM) recognizes the response, fuel and spark are enabled. If not, the engine cranks but won't fire.

This happens in about 100 milliseconds. You never notice it. But without that handshake, your car is a 4,000-pound paperweight. That's why a key with the correct blade cut but no programmed chip won't start the engine. The blade opens the door and turns the ignition. The chip starts the engine. Two separate systems.

According to the National Insurance Crime Bureau (NICB), vehicle theft dropped approximately 50% after transponder immobilizers became standard in the late 1990s. Before transponders, hotwiring was easy. After transponders, the engine won't run without the correct chip signal.

What Transponder Chip Types Does Triton Locksmith Program?

Every major chip family on the road. Each vehicle manufacturer uses specific chip types with different encryption protocols. Here's what we handle daily:

• Texas Instruments 4C (fixed code): Earliest generation. Found on 1996-2005 era Ford, Toyota, and some Nissan models. Can be directly cloned.
• Texas Instruments 4D (crypto): Rolling-code encryption. Widely used on 2000-2015 Ford (PATS system), Toyota, and Lexus. Requires OBD-II programming or EEPROM access.
• Philips/NXP 46 (crypto): Used by many Asian and American brands 2005-2015. Honda, Hyundai/Kia, GM. Requires specialized cloning equipment.
• Philips/NXP 49 (Hitag Pro): AES-128 encryption. Current generation on most 2015+ vehicles. Significantly harder to program. Requires IMMO data reading from the vehicle.
• Philips/NXP 8A (Hitag AES): Newest generation. Found on 2018+ Toyota, Hyundai, Kia, and Subaru. Requires our most advanced programming tools.
• Megamos 48: Used primarily by VW/Audi group. Unique crypto algorithm. Requires VAG-specific programming.
• Toyota G and H chips: Toyota-specific transponders with proprietary encryption. The G chip uses a signature-based system. The H chip adds additional security layers.

Our Autel IM608 Pro, Xtool, and Smart Pro programmers cover all of these chip families. We stay current on new chip releases because manufacturers introduce new security every model year.

How Does Transponder Key Programming Work Step by Step?

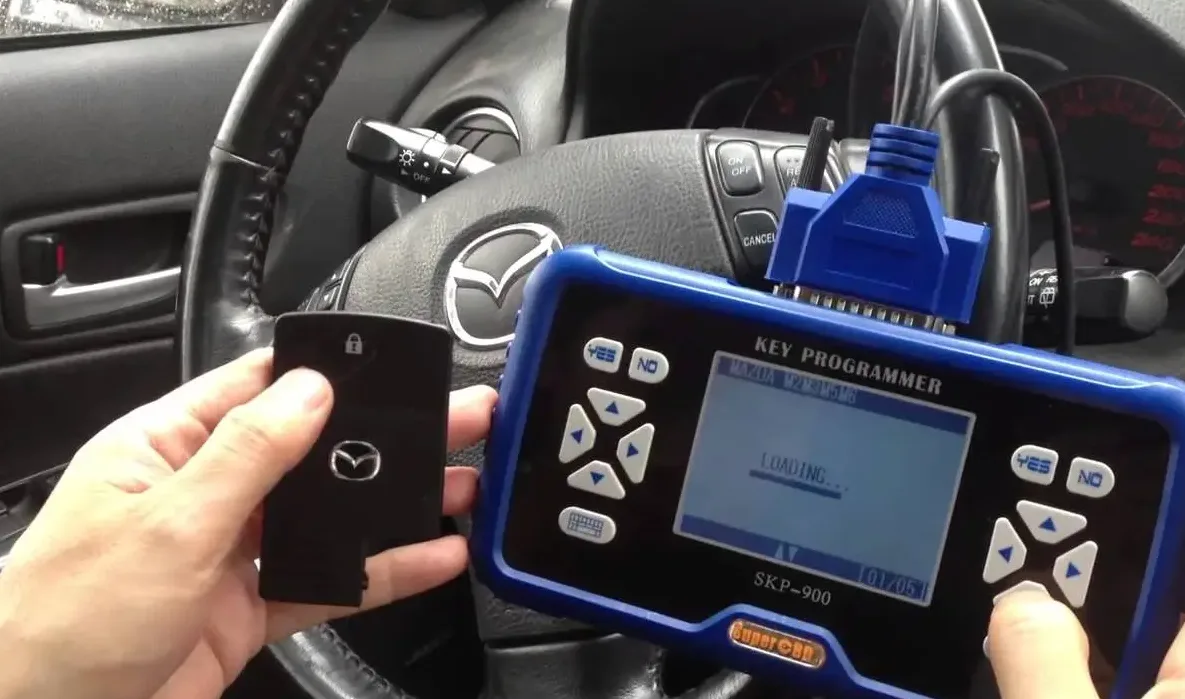

We connect to your car's OBD-II diagnostic port and register the new key's chip to the immobilizer module. Here's exactly what happens:

1. Connect diagnostic tool: We plug into the 16-pin OBD-II port under the dash. Our tool communicates with the ECM/BCM.
2. Read the immobilizer data: We pull the security configuration from the car's computer. This tells us what chip type is expected and the current key registrations.
3. Prepare the new key: If the chip needs initialization (newer AES types), we write the initial data to the blank key's chip.
4. Register the key: The diagnostic tool instructs the car's immobilizer to add the new chip ID to its approved list.
5. Verify: We turn the key in the ignition (or press start). Engine fires. Security light turns off. Key is fully functional.

Total time: 20-40 minutes depending on the chip type. Older 4C/4D chips are fastest. Newer AES-encrypted chips take longer because of the additional security handshake steps.

How Much Does Transponder Key Programming Cost?

$100-$250 for programming only.

• Standard chips (4C, 4D, 46, Megamos 48): $100-$150
• Advanced chips (49, 8A, Toyota G/H, AES): $150-$250
• Additional key (same visit): $25-$50 per extra key
• Key blade cutting (if needed): $65-$175 additional

If you need a complete key (blade + chip + programming), see our car key replacement service ($150-$350 all-inclusive).

What's the Difference Between Cloning and Programming?

Cloning copies an existing key's chip data to a new blank. Programming registers a new chip directly with the car. Cloning is faster and doesn't require the car to be present for the chip step (though you still need the car for testing). Programming requires connecting to the vehicle's OBD-II port.

Older chip types (4C, 4D) can be directly cloned. We read the original key's chip and write the same data to a blank. The car can't tell the difference. Newer AES-encrypted chips (49, 8A) can't be directly cloned because the encryption prevents copying. Instead, we register a new unique chip ID with the car's immobilizer through OBD-II programming.

Why Won't My Car Start Even Though the Key Turns?

The key blade opens the door and turns the ignition. But the transponder chip is what lets the engine run. If the engine cranks (starter motor engages) but won't fire and the security light on the dashboard stays on or blinks, the immobilizer is blocking the fuel system because it doesn't recognize the transponder.

Common causes: the chip died (rare after 10+ years), the chip got desynced after a battery disconnect, the chip was damaged physically (dropped in water, run over), or someone used a non-programmed copy of the key. We diagnose all of these on-site with our chip reader.

Where Does Triton Locksmith Program Transponder Keys?

At your vehicle, anywhere across 48 South Florida cities. We bring the diagnostic equipment to you. Boca Raton, Coral Springs, Coconut Creek, Fort Lauderdale, West Palm Beach, and everywhere in between. 20-minute response. Call (561) 524-8500.
