Electric Strike Installation

What Is an Electric Strike and How Does It Work?

An electric strike replaces the standard metal strike plate in your door frame. When it receives an electrical signal (from a button, intercom, or access control reader), the strike pivots open and allows the door to push open without turning the handle. Release the signal and the strike returns to locked position.

Electric strikes work with your existing lock hardware. You don't need to replace the lock itself. The strike does the remote release while the mechanical lock still provides physical security when the system is at rest.

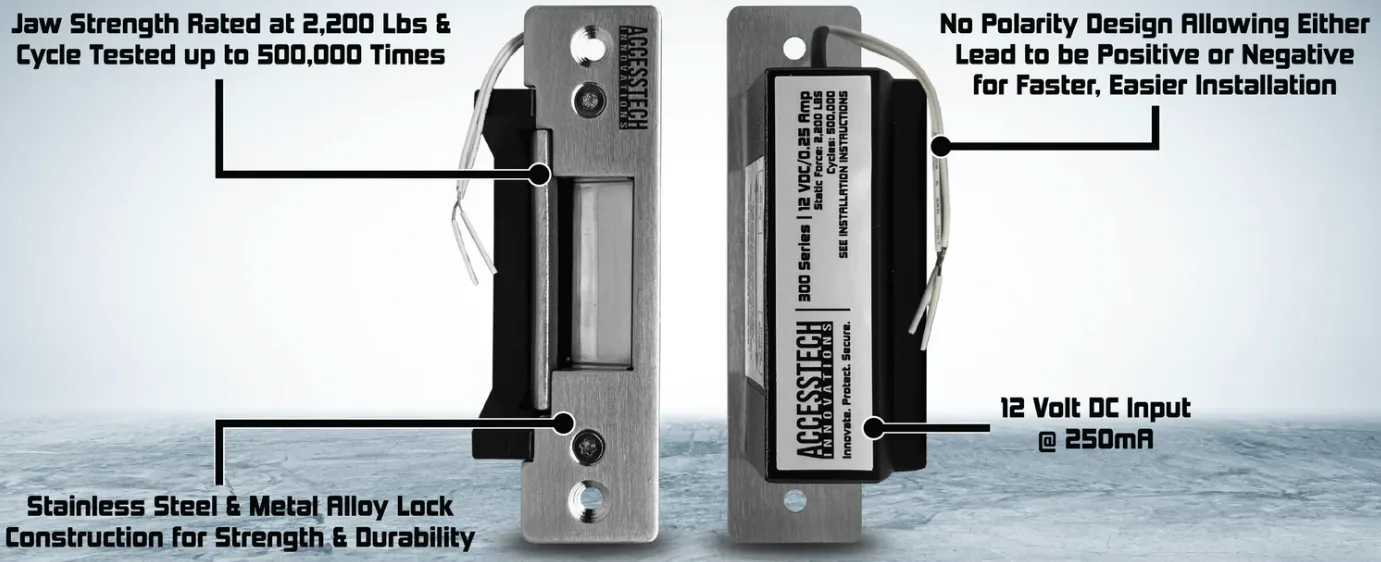

What Is an Electric Strike?

An electric strike replaces the standard door strike plate with a motorized version that releases when triggered. When the strike is energized (or de-energized, depending on the model), the strike keeper pivots open and allows the door to push open without turning the handle or retracting the latch. The mechanical lock still works normally for keyed entry.

Electric strikes are the most common way to add remote door release to an existing commercial door. They work with access control systems, intercoms, and buzzer systems. When someone badges in or gets buzzed in, the electric strike releases and the door opens.

Types of Electric Strikes

• Fail-secure (locked on power loss): The strike stays locked when power is cut. Requires power to unlock. Used on exterior doors, server rooms, and any door that must stay secured during a power outage.
• Fail-safe (unlocked on power loss): The strike releases when power is cut. Requires power to stay locked. Used on fire exit doors and any door where fire code requires free egress during emergencies.
• Monitored: Built-in sensor reports whether the door is open or closed and whether the strike is locked or unlocked. Integrates with security systems for door position monitoring.

Electric Strike Brands Triton Locksmith Installs

HES (Hanchett Entry Systems), Von Duprin, Folger Adam, Adams Rite, and Securitron. HES 1006 series is the most common commercial electric strike in South Florida. We carry 12V and 24V models in fail-secure and fail-safe configurations on the van.

How Much Does Electric Strike Installation Cost?

• Standard electric strike (HES 1006): $200-$350 installed
• Heavy-duty electric strike (HES 9600): $350-$500 installed
• Adams Rite (for storefront doors): $250-$400 installed
• Wiring to access control panel: $100-$300 depending on distance
• Door frame modification (if needed): $50-$150

Where Does Triton Locksmith Install Electric Strikes?

Offices, medical buildings, retail stores, apartment buildings, and any commercial property needing remote door release. Boca Raton, Coral Springs, Coconut Creek, Fort Lauderdale, West Palm Beach. Same-day installation. Call (561) 524-8500.

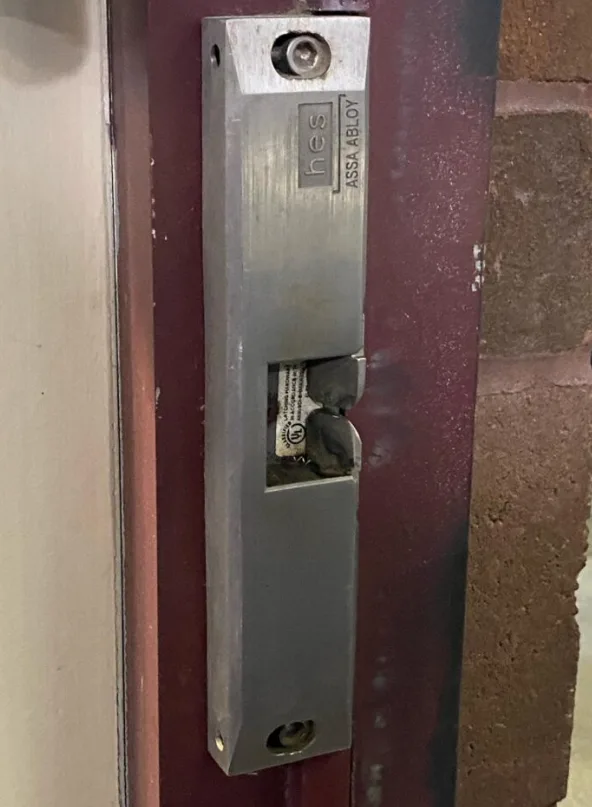

Electric Strike Installation Process

Step 1: Frame prep. Triton Locksmith removes the existing strike plate and enlarges the frame pocket to accept the electric strike body. For hollow metal frames, we use a nibbler tool. For wood frames, a chisel. The pocket must be precise for proper latch alignment.

Step 2: Wiring. Low-voltage wire (16-22 gauge) runs from the electric strike to the power source. For access control systems, the wire goes to the control panel. For intercoms, to the controller. Triton Locksmith conceals all wiring inside the wall or in surface-mount conduit.

Step 3: Test. Triton Locksmith verifies the strike releases properly, the door latches when released, and the fail mode works as specified. We also test the fire alarm release connection if applicable.

Why Businesses Choose Electric Strikes

Electric strikes are the most cost-effective way to add electronic access to an existing commercial door. Compared to magnetic locks ($250-$500), electric strikes are similar in price ($200-$350) but maintain mechanical lock function as backup. If the electronics fail, the door still locks with the key. This redundancy makes electric strikes the preferred choice for most commercial applications in Boca Raton, Coral Springs, Coconut Creek, Fort Lauderdale, West Palm Beach.

Electric strikes also offer the most flexibility in fail mode selection. Fail-secure for exterior doors that must stay locked during outages. Fail-safe for fire exits that must release during emergencies. Triton Locksmith helps you select the correct fail mode for each door based on fire code and security requirements.
